双城风机EPLFN无涡壳风机

EPLQN

EPLFN

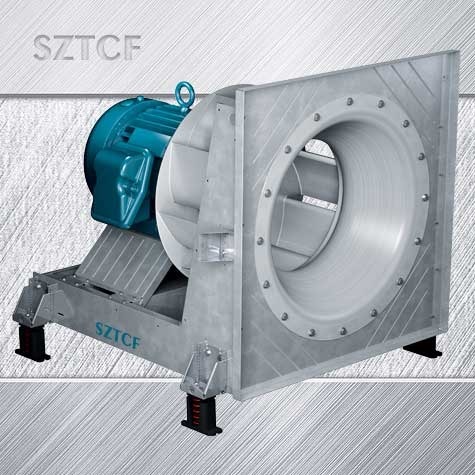

Plenum Fan, Commercial Duty, 9-Bladed



Application

无涡壳风机是用于在空气处理机组中对风箱内的空气进行增压。具有高效的特点,并且无涡壳、无风管过渡段和扩压段的设计使风机在空气处理机内部节省了许多空间。有9片或者12片机翼式叶片两种叶轮。

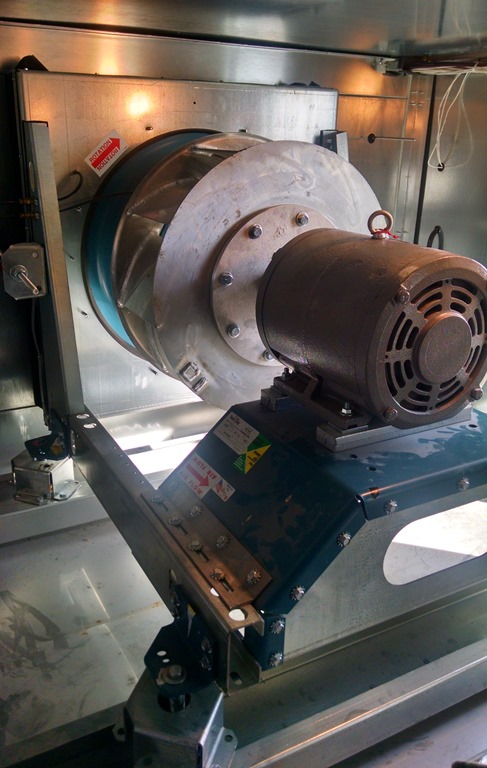

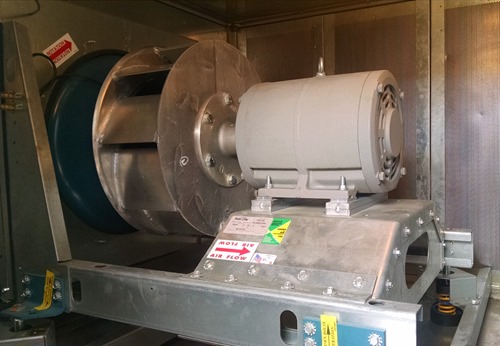

EPLFN Plenum Fans are used in field-fabricated and factory-built air handling units to pressurize the entire surrounding air plenum. This allows the discharge ductwork to be directly connected to the air handler from any direction. The plenum fan design also saves space by eliminating the fan housing, transitions and diffusers within the air handling unit.

Sizes (wheel diameters)
叶轮直径:314 mm to 1,244 mm

Performance
风量:116,891 m3/hour
静压:2,113 Pa

AMCA认证的声强和空气动力性能
UL705认证
